Rotary tables
RDD LP series
  • Optimised height
  • Wide range of connection options
  • High energy density
General info
Areas of application
Technical data

The KML LowProfile rotary table series (RDD LP) has been specially developed for assembly-space-sensitive rotary motion. The extremely flat design in combination with a very large hollow shaft facilitates implementation of the lowest installation heights. This means that extremely compact implementations can be realised in the overall system construction (e.g. in combinations with cross tables or other axis systems).

The series offers different winding variants that enable a wide range of application-oriented designs close to the standard. Furthermore, a wide range of encoders is available in this series, from simple incremental encoders to highly accurate absolute encoders.

Our standardised modular system makes it possible to configure and implement e a system that optimally meets the your requirements.
With our extensive range of accessories, any multi-axis solution can be configured. Combining the different series of our KML axes with standardised adapter parts provides a high degree of flexibility in the configuration of multi-axis systems, allowing the system to be optimally adapted to your individual requirements.

  • Optics and mirror adjustment
  • Rotary table applications
  • Robot handling
  • AOI applications
  • Test systems
  • Printer systems
  • X-ray
  • Semiconductor manufacturing
  • Laser processing
Type / size
Continuous torque [Nm] 0.80 – 5.4
Peak torque [Nm] 1.60 – 17.0
Max. speed [rpm] 50 – 500
Max. continuous current [A] 2.40 – 5.10
Max. peak current [A] 4.00 – 8.00
Number of poles [1] 34
Repeat accuracy [arcsec] 50

Attention: Specified values are empirically determined and vary depending on the application.
The values are maximum values.

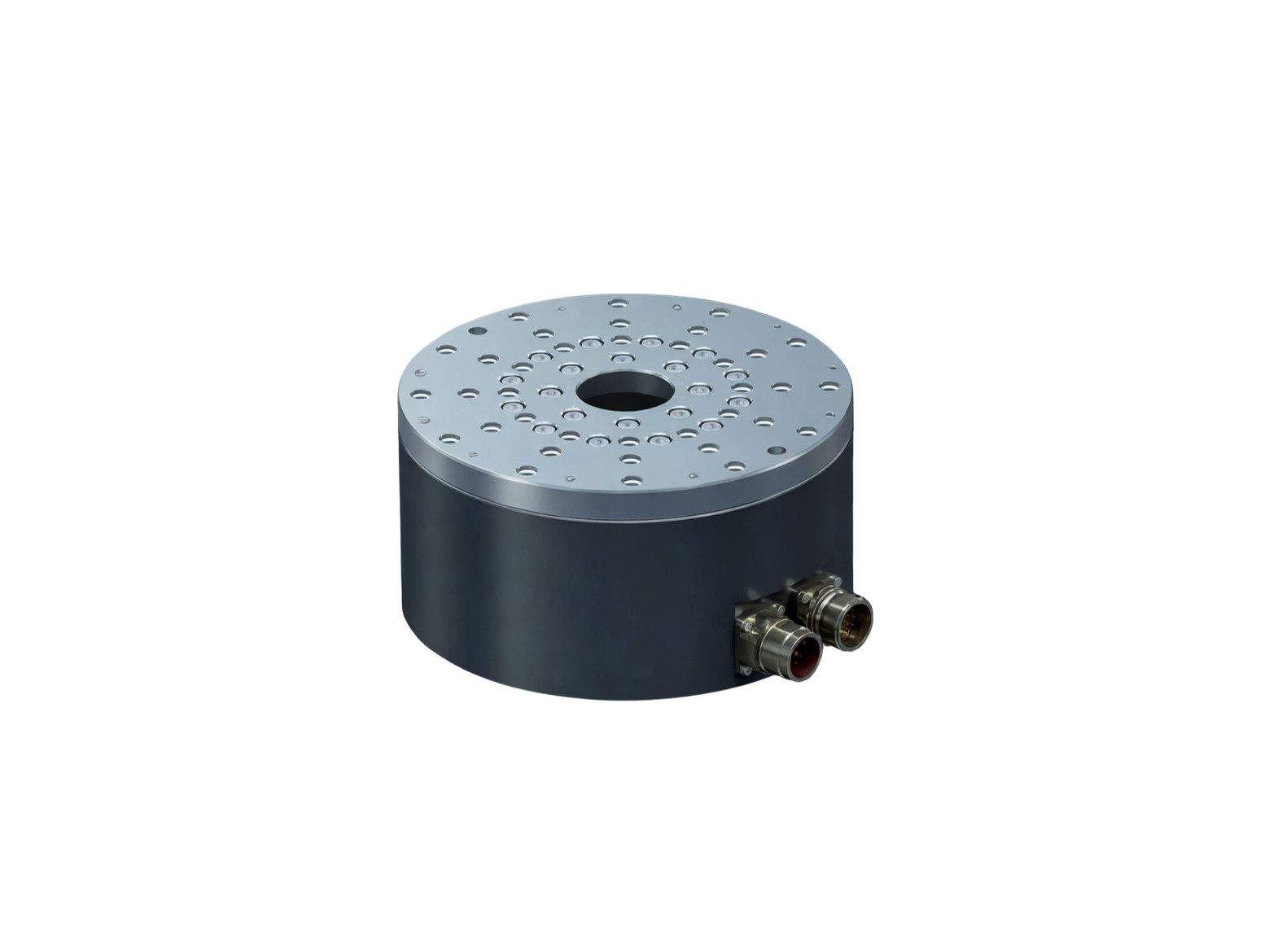

Similar products
